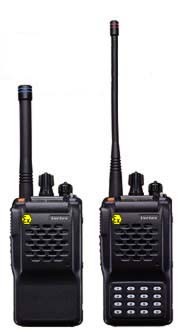

VX800 EEx       200 channel 4 Watt VHF/UHF

The VX-800EEx series of portables are unique high power Intrinsically Safe radios approved to the latest ATEX approval specifications.
VX-800 EEx UHF (400-485)
VX-800 EEx VHF (134-174

General Specifications
VX-800 (VHF)
VX-800 (UHF)
Number of Channels
200 Channels
Frequency Range 134-160MHz (A)
146-174MHz (C)

450-485MHz (D)
440-470MHz (CS)
400-430MHz (ASI)
Channel Spacing
(PLL Step 1.25/2.5/5/6.25 kHz)
(PLL Step 5/6.25 kHz)
Power Supply Voltage
Battery Life w/FNB-V800EEx
(5-5-90 duty)

9hrs (12hrs w/saver)
at 4W

9hrs (12hrs w/saver)
at 4W
Ambient Temperature Range
-20°C to +55° C
Frequency Stability
Better than ±2.5ppm
RF Input-Output Impedance
50 Ohms
Dimensions (W x H x D)
2.3" x 4.3" x 1.1" (58 x110 x28.9 mm)
Weight (approx.)
0.77 lbs. (352 grams)
w/FNB-V800EEx, antenna, belt clip
Receiver Specifications
Measurements made per ETSI
ETS 300 086
Circuit Type
Double Conversion Superheterodyne
20 dB Quieting
Adjacent Channel Selectivity
25 kHz / 12.5 kHz channel spacing
75dB / 70dB
75dB / 68dB
25 kHz / 12.5 kHz
75dB / 68dB
75dB / 65dB
Spurious & Image Rejection
Audio Output
0.5W @ 16 Ohms, <3 % THD (BTL output)
Transmitter Specifications
Measurements made per ETSI
ETS 300 086
Power Output
4.0, 0.5 W (Selectable)
Direct FM 16K0F3E / Direct FM 11K0F3E
Conducted Spurious Emissions
70 dB Below Carrier
Audio Distortion @ 1 kHz
< 3 %


  HX-370S Marine Portable -NO ATEX
•  Water submersible radio
•  Includes Long Life Ni-MH Battery Pack (7.2V 1400 mAh), Alkaline Battery Case, and Drop-in 10-Hour Charger with AC and DC Power Cables
•  Submersible (1 meter for 30 minutes)
•  5 Watts Transmit Power
•  Highly Legible LCD with Automatic Back-light
•  High Intensity SOS Strobe Light
•  Scanning, Dual Watch, and More!
•  40 Dealer Programmable LMR (land Mobile Radio) channels with CTCSS or DCS signaling
•  Intrinsically Safe version HX370SAS available
